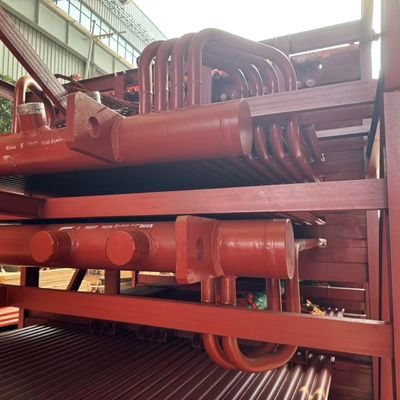

Boiler Membrane Walls Made of SA210C for Power Plant Boiler Replacement

Boiler Wall Panels Made of SA210C OD60mm*6mm for Power Plant Boiler Replacement

Product Description

        The membrane water wall refers to the water wall composed of flat steel and pipes assembled and welded together by spot welding, thus forming an airtight pipe screen.The unique material of the membrane water wall simplifies the furnace wall structure and reduces the overall weight of the boiler. In addition, it also has good air tightness, can adapt to the requirements of positive pressure combustion for boilers, is not easy to slag, less air leakage, reduces exhaust gas heat loss, and improves boiler thermal efficiency. In terms of manufacturing, the water-cooled wall can be welded into components by the manufacturer, and the installation is quick and easy. At the same time, the use of membrane wall structure of the boiler, the maintenance is convenient and simple, and the service life of the boiler can be greatly improved.

Advantages

(1) Ensure the tightness of the furnace wall and reduce the air leakage of the combustion chamber.

(2) The combustion chamber is fully water-cooled, which is conducive to preventing coking in the case of intensified combustion.

(3) The heat storage capacity is small, the combustion chamber heats up quickly, and the cooling is also fast, which can shorten the cooling time of boiler start-up and shutdown.

(4) It is suitable to use the pipe-laying furnace wall, which greatly reduces the load of the boiler frame and is convenient for suspension.

(5) Compared with the plain tube, the heat absorption capacity of the tube is improved.

(6) It improves the degree of pre-assembly of boiler parts, which is convenient and reduces the installation workload.

Applications

        HDB Membrane Wall is a boiler wall separator with excellent impact resistance which is designed to effectively partition the boiler wall. It is made of stainless steel, with a pressure of 0.2MPa, and length of 1000mm. The installation method is bolt connection, making it fast and easy to install. By using the HDB Membrane Wall, it can help to reduce the risk of potential boiler wall damage caused by high temperature and pressure. It can also provide a great sealing and insulation effect, and help to reduce energy loss. Therefore, the HDB Membrane Wall is a perfect choice for partitioning boiler walls.

Customization

Packing and Shipping

        The Boiler Membrane Wall is packaged and shipped in a secure cardboard box. The box must be large enough to accommodate the product, padding, and packaging materials. The product should be wrapped in a thick layer of bubble wrap or other protective material before being placed in the box. The box should also be securely sealed with tape or other sealing material.

        The package must clearly indicate the contents, weight, and shipping destination. It should also include a return address and contact information. The package should be labeled with a "Fragile" sticker or other appropriate warning. Finally, the package should be placed in a larger shipping box for additional protection during transit.

About us

        Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
