| MOQ: | 2,000 PC |
| 가격: | 협상 가능 |
| 표준 포장: | 철제 프레임으로 수출용 항해에 적합한 포장 |
| 배달 기간: | 보증금이나 L/C를 받은 후 100일 이내에 |
| 지불 방법: | l/c, t/t |
| 공급 능력: | 1월 500 톤 |
Customized Industrial Grade Spiral Fin Tubes For High Stiffness Low Flow Resistance
What are the common failure modes of Boiler Fin Tubes and how to prevent them?
Common failure modes include fin-tube bonding separation (due to poor welding/bonding), corrosion (from acidic flue gas), and erosion (from high-velocity dust particles). Prevention measures: use high-quality welding/bonding processes (e.g., TIG welding), select corrosion-resistant materials, install dust collectors to reduce dust content, and regularly inspect the fin-tube surface.
Product Introduction

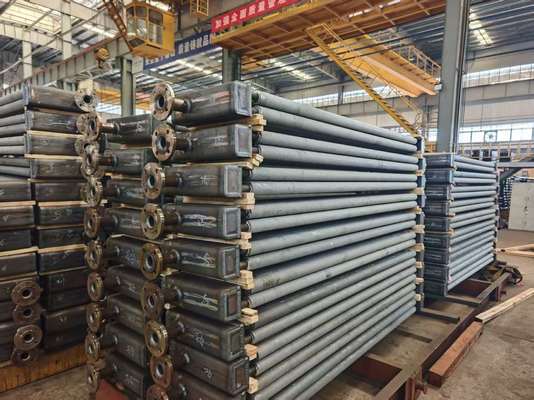

The spiral finned tube is a finned tube that is cold-wound at room temperature, and the steel strip is reinforced on the steel tube in a winding way, which is an efficient heat transfer element with spiral fins, and its heat transfer area is several times or even dozens of times that of the plain tube. Spiral fin tubes have been widely used in heat recovery of boiler economizers, air preheaters and waste heat boilers, as well as heat exchange equipment in various fields such as chemical industry and pressure vessels.
Advantages
Classification
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
Company Information
Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
Design and development
Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.
비디오
|
|
| MOQ: | 2,000 PC |
| 가격: | 협상 가능 |
| 표준 포장: | 철제 프레임으로 수출용 항해에 적합한 포장 |
| 배달 기간: | 보증금이나 L/C를 받은 후 100일 이내에 |
| 지불 방법: | l/c, t/t |
| 공급 능력: | 1월 500 톤 |
Customized Industrial Grade Spiral Fin Tubes For High Stiffness Low Flow Resistance
What are the common failure modes of Boiler Fin Tubes and how to prevent them?
Common failure modes include fin-tube bonding separation (due to poor welding/bonding), corrosion (from acidic flue gas), and erosion (from high-velocity dust particles). Prevention measures: use high-quality welding/bonding processes (e.g., TIG welding), select corrosion-resistant materials, install dust collectors to reduce dust content, and regularly inspect the fin-tube surface.
Product Introduction
The spiral finned tube is a finned tube that is cold-wound at room temperature, and the steel strip is reinforced on the steel tube in a winding way, which is an efficient heat transfer element with spiral fins, and its heat transfer area is several times or even dozens of times that of the plain tube. Spiral fin tubes have been widely used in heat recovery of boiler economizers, air preheaters and waste heat boilers, as well as heat exchange equipment in various fields such as chemical industry and pressure vessels.
Advantages
Classification
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
Company Information
Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
Design and development
Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.
